HT8 Drum Floor Sander

£2,220.65£2,473.09

In stock

Product Code (PSTK): HT8
Pack Qty: 1
Price: Each

Description

The HT8 is a 200mm (8″) high performance drum floor sander with clamp bar sanding drum technology. Available with multi-speed or single speed control.

The tool rental industry’s floor sander of choice, the clamp bar drum system allows the drum rubber to be easy serviced and replaced when needed minimising downtime and service costs. The unique drum rubber resists abrasion and damage caused by exposed nails while providing the feel and touch needed to sand a fine, score free finish.

Hiretech’s patented reversible clamp bar makes it easy for the user to fit abrasives, quickly and accurately. The drop forged clamp bar will not bend or distort over time ensuring that the abrasive paper is clamped securely in place at all times. The HT8’s unique lifting pin assembly lifts the clamp bar clear of the drum when fitting or removing abrasives.

The HT8 motor is a high speed heavy duty, self cooling four brush design. The motor will not stall or slow down under load when sanding with coarse grit abrasives, removing old surface finishes, deposits of wax or dirt. This high performance ensures a fast, consistent production rate making it easy for the user to get a regular and uniform finish across the whole floor area and throughout the complete range of abrasive grits.

Completely self contained with a high efficiency dust pickup, the HT8 breaks down into three simple component parts for easy transport. The high impact ABS injection moulded side guards and drum guard will not scar or scuff walls and protect the HT8 during transport.

The HT8 will sand all types of wooden floors including parquet to a fine score free finish. The HT8 can also be used on a wide range of other surfaces including some types of decking, fibre board, cork, engineered and composition floors.

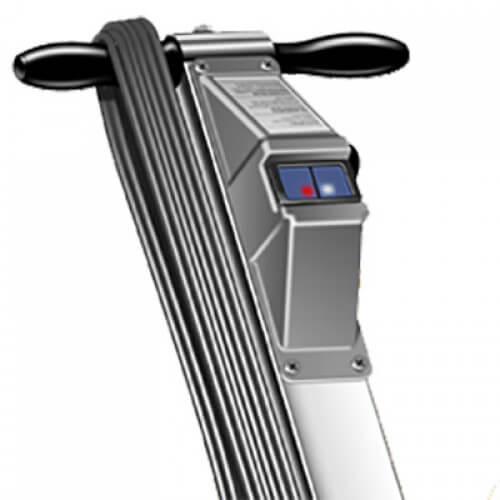

HT8 SWITCH OPTIONSSINGLE SPEEDMULTI-SPEED
Switch TypeContactorElectronic
Operating Speeds14
Drum rpm
(revolutions per minute)
Speed 1 = 3,300rpmSpeed 1 = 2,500
Speed 2 = 2,650
Speed 3 = 2,800
Speed 4 = 3,300

HT8 Abrasive Starter Kit

  • No volt safety switch prevents accidental start-up.
  • Choice of single speed or multi-speed switch.
  • Powerful 4 pole (brush) motor geared 3:1, up to 4.5hp at the drum.
  • Dynamical balanced sanding drum.
  • Tough clamp bar style drum.
  • High impact resistant ABS guards.
  • High powered vacuum system.
  • Disposable paper or cloth dust bags.
  • 2 year warranty.

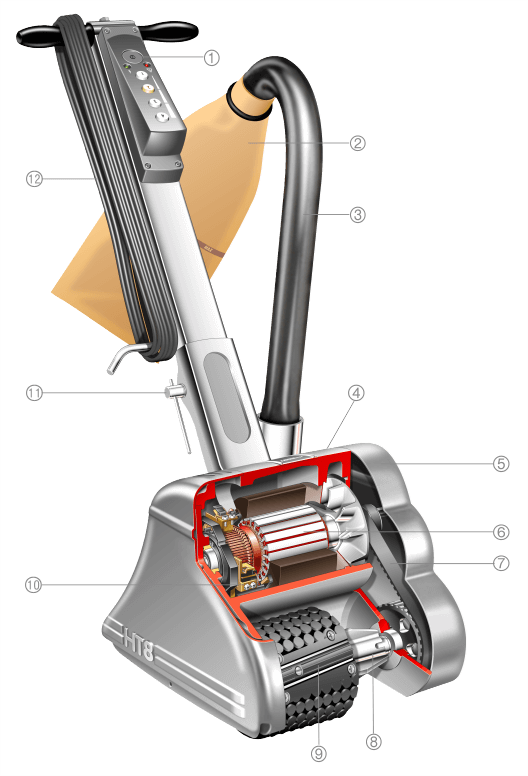

HT8 Drum Floor Sander Design Illustration
  1. Multi-speed or single speed safety switch.
  2. Disposable paper bags for efficient and safe dust collection read more.
  3. High powered vacuum system, with seated oversize wide bladed alloy vacuum fan and adjustable dust pan. In combination with Hiretech disposable paper dust bags, dust collection is very efficient improving the operating environment and minimising clean-up time.
  4. Polished aluminium alloy body.
  5. ABS side guards help prevent damage to walls and skirtings.
  6. Four pole motor provides powerful performance with constant drum speed across the whole range of abrasive grits and motor speeds.
  7. Long lasting non-slip toothed drive belts with precision gear cut pulleys.
  8. Dynamically balanced 203mm (8”) wide sanding drum, aluminium extrusion and high performance drum rubber with stainless steel backing.
  9. Patented reversible drop forged paper clamp bar with clamp bar screws and lifting pin system.
  10. Precision moulded brush block with brass brush holders and constant force brush springs.
  11. Adjustable handle provides ideal height for perfect control and feel.
  12. 7m (23′) power cable with non-marking outer insulation prevents marking of newly sanded floor.

Single-Speed


Multi-Speed

ITEMSPECIFICATIONNOTES
ModelHT8-1
Product Codes07005 (220/240V Single Speed)
07006 (110/120V Single Speed)07005MS (220/240V Multi Speed)
07006MS (110/120V Multi Speed)
V = Volts
Power Supply220/240V 50/60Hz
110/120V 50/60Hz
V = Volts
Hz =  Hertz (unit of frequency)
Off Load Current220/240V = 5A
110/120V = 8A
A =Amps
Average Load Current220/240V = 8A
110/120V = 15A
A =Amps
Noise95 dBA at 1 meter (3’2″)dBA = decibels
Vibration1.60 m/s2 rmsm/s = meters per second, rms = root mean squared
SwitchSingle Speed – contactor type On/Off with no volt start and overload protection.

Multi Speed – electronic control with 4 operating speeds, no volt start and overload protection, service indicator and power-connected light, fault indicator light.

MotorContinuous heavy-duty AC/DC self cooling 4 brush motor.AC/DC = Alternating Current/Direct Current
Motor RPMSingle Speed = 8,500

Multi Speed = 8,500/7,300/6,900/6,500 user selected speeds 4/3/2/1

RPM = revolutions per minute

Mean rpm across voltage range, actual rmp will vary depending on voltage and condition of machine.

Drum RPMSingle Speed = 3,300

Multi Speed = 3,300/2,800/2,650/2,500 user selected speeds 4/3/2/1

RPM = revolutions per minute

Mean rpm across voltage range, actual rmp will vary depending on voltage and condition of machine.

Sanding Drum203mm (8″) wide aluminium extrusion with screw on moulded rubber drum cover with stainless steel backing and 2 screw abrasive clamp bar, dynamically balanced to 0 to 3g (0 to 0.106 oz) tolerance.g = gram, oz = ounce
DriveNon-slip toothed timing belts and high precision gear cut pulleys.
Dust PickupSeated oversize alloy vacuum fan with adustable dust shoe, disposable paper dust bag or cloth bag.
Moving PartsSealed for life ball bearings.
GuardsHigh impact injection moulded ABS
Abrasives495mm (19.5″) total length x 203mm (8″) wide abrasive sheet with notched and angled ends. Recommended grit P24 to P120. Recommended type aluminium oxide or silicon carbide, backing E or F weight paper, bonding resin over resin with antistatic additives.
Power Cable7m (23′) Non-marking outer insulation.
Dimensions322mm x 940mm x 855mm
(12.7″ x 37″ x 33.6″)
width x depth x height

Maximum dimensions with handle fully extended and dust bag in operating position.

Weight Net41.5kg (91.5lbs)
Shipping Weight50.0kg (110.3lbs)
Shipping Dimensions780mm x 400mm x 440mm
(30.75″ x 15.75″ x 17.5″)
width x depth x height
Quantity per Pallet6Pallet size 1000mm x 800mm
Warranty2 years
ApprovalsCE (220/240V)
CE (110/120V)
CSA/C US (110V North America)
CE = European Economic Area Manufacturer Certification

CSA/C US = Canadian Standards Association certified for USA and Canada

PDS
HireTech_HT8_PDS_082224

Single-Speed

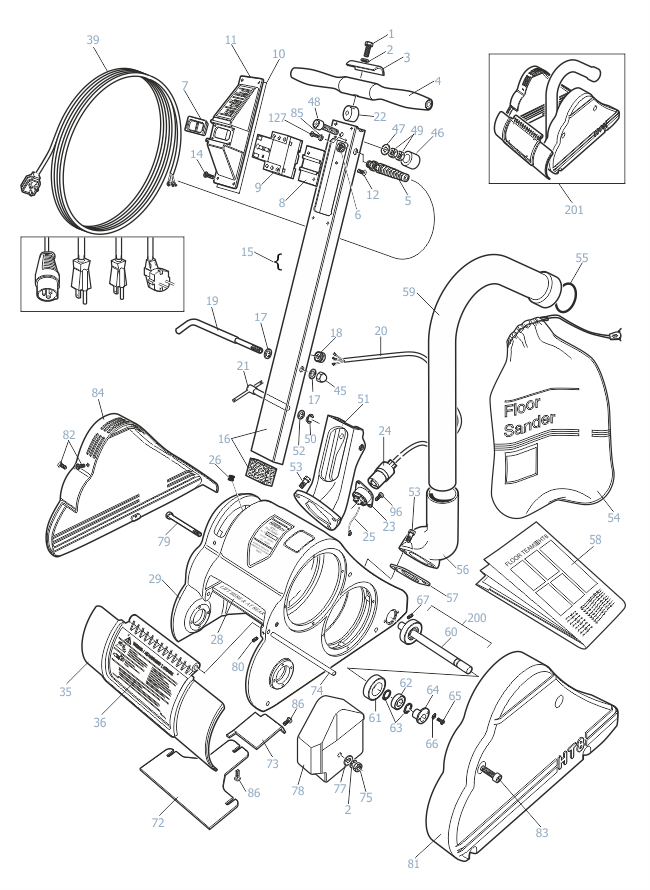

HT8 Parts List & Drawing
